Ballistic Aramid Npuag

Zhangjiagang City Yudun Tshwj Xeeb Fiber Co., Ltd.

Tsim los ntawm 2009, peb lub tuam txhab tau koom nrog R & D, ntau lawm, thiab kev lag luam ntawm aramid fiber ntau cov khoom hauv Suav teb. Tom qab xyoo ntawm kev siv zog tas mus li, peb cov khoom tau tsim los ua ob qhov loj: tub rog thiab pej xeem.

Cov khoom siv tub rog feem ntau suav nrog cov kaus mom ballistic (ua los ntawm Aramid lossis UHMW-PE), Aramid UD ballistic panels, Aramid UD npuag, thiab Aramid woven fabrics. Cov no feem ntau yog siv rau cov tsho tiv thaiv mos txwv thiab cov kaus mom tiv thaiv mos txwv.

Vim Li Cas Xaiv Peb

Peb Daim Ntawv Pov Thawj

Peb cov ntaub knitted ua tau raws li GB / T 19001-2016 thiab ISO 9001: 2015 tus qauv. Qhov no qhia tau hais tias peb cov khoom ua raws li kev tswj hwm nruj nruj thiab raug tsim los ntawm cov txheej txheem zoo ib yam, txhim khu kev qha.

Customized Service

Peb nkag siab tias txhua tus neeg siv khoom muaj cov kev xav tau tsim tshwj xeeb. Tias yog vim li cas peb muab cov kev xaiv customization kom tau raws li koj cov kev xav tau tshwj xeeb.

Kev Lag Luam Ntau Lawm

Peb cov khoom tau txais txiaj ntsig zoo hauv Tebchaws Europe, Amelikas, Middle East, Asia, Africa, thiab Southeast Asia rau ntau xyoo.

Para Meters

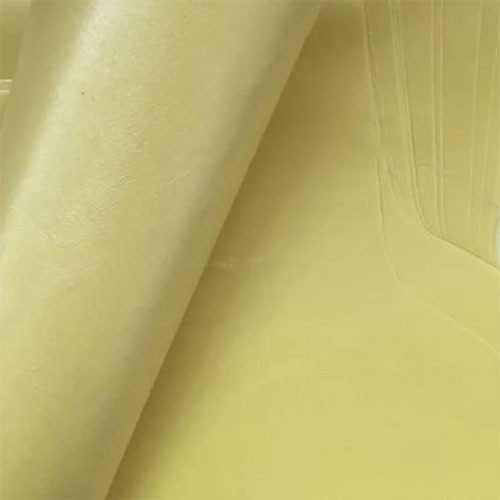

Hom	Aramid UD ntaub
*Specification (L W)**	3.2*1.6m
Thickness	0.23mm ib
Areal ceev	220G/M2

Cov yam ntxwv

Areal hnyav	460 g / m2
Weaving style	Plain
Muaj qhov dav	1.22 m
Warp hom xov paj	Aramid fiber ntau, 3300 dtex
Weft hom xov paj	Aramid fiber ntau, 3300 dtex
Warp reinforcement ratio	50%
Weft reinforcement ratio	50%
Warp xov suav	6.7 Xaus (xov) / cm
Weft xov suav	6.7 Xaus (xov) / cm

Cov cuab yeej cuab yeej cuab tam ntawm Aramid Fiber Siv

Tensile zog (MPa)	2863
Tensile Modulus (GPa)	67
Elongation ntawm tawg (%)	3.7
Qhov taw qhia cov txiaj ntsig ballistic (V-50, av nplaum rov qab)	44 mag swc, 16 txheej, 474 m/s

Cov khoom

Zoo tiv thaiv abrasion
Zoo tsis kam rau cov kuab tshuaj organic
Nonconductive
Tsis muaj melting point, degradation pib ntawm 500 degree
Tsawg flammability
Cov ntaub zoo meej ntawm qhov kub siab
Yooj yim rau electrostatic charge build-tsuas yog ua tiav
High Young's modulus
Siab tenacity
Tsawg creep
Tsawg elongation thaum tawg

FAQ

Q: Peb puas tuaj yeem tau txais cov qauv rau kev siv?

A: Peb zoo siab xa cov qauv rau koj qhov kev kuaj xyuas, tab sis koj yuav tsum them tus qauv (nyob ntawm seb cov khoom muaj nqis) thiab tus nqi nthuav tawm.

Q: Ntev npaum li cas kuv cov khoom yuav npaj rau kev xa khoom?

A: Cov khoom tshwj xeeb sib txawv nrog ntau qhov sib txawv, lub sijhawm xa khoom txawv. Raws li ib txwm muaj, nws yuav siv sijhawm 15-25 hnub ua haujlwm.

Q: Peb tuaj yeem lav qhov zoo li cas?

A: Ib txwm ua ntej- qauv tsim ua ntej ntau lawm thiab ib txwm kuaj zaum kawg ua ntej xa khoom.

Q: Koj cov nqe lus them nqi yog dab tsi?

A: T / T, L / C, PayPal, thiab tuaj yeem sib tham.

Peb nyob nraum kev ballistic aramid npuag manufacturers thiab lwm tus neeg nyob hauv Suav teb, tshwj xeeb hauv kev muab cov kev pabcuam zoo. Peb sov siab txais tos koj rau cov lag luam wholesale bulk ballistic aramid npuag rau muag ntawm no thiab tau txais pricelist los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
